Features:

  • Quick and easy disassembly (Figure A)
  • Color-through color panels hide scuffs and scratches
  • Armrests are padded and adjustable
  • Quick connect batteries

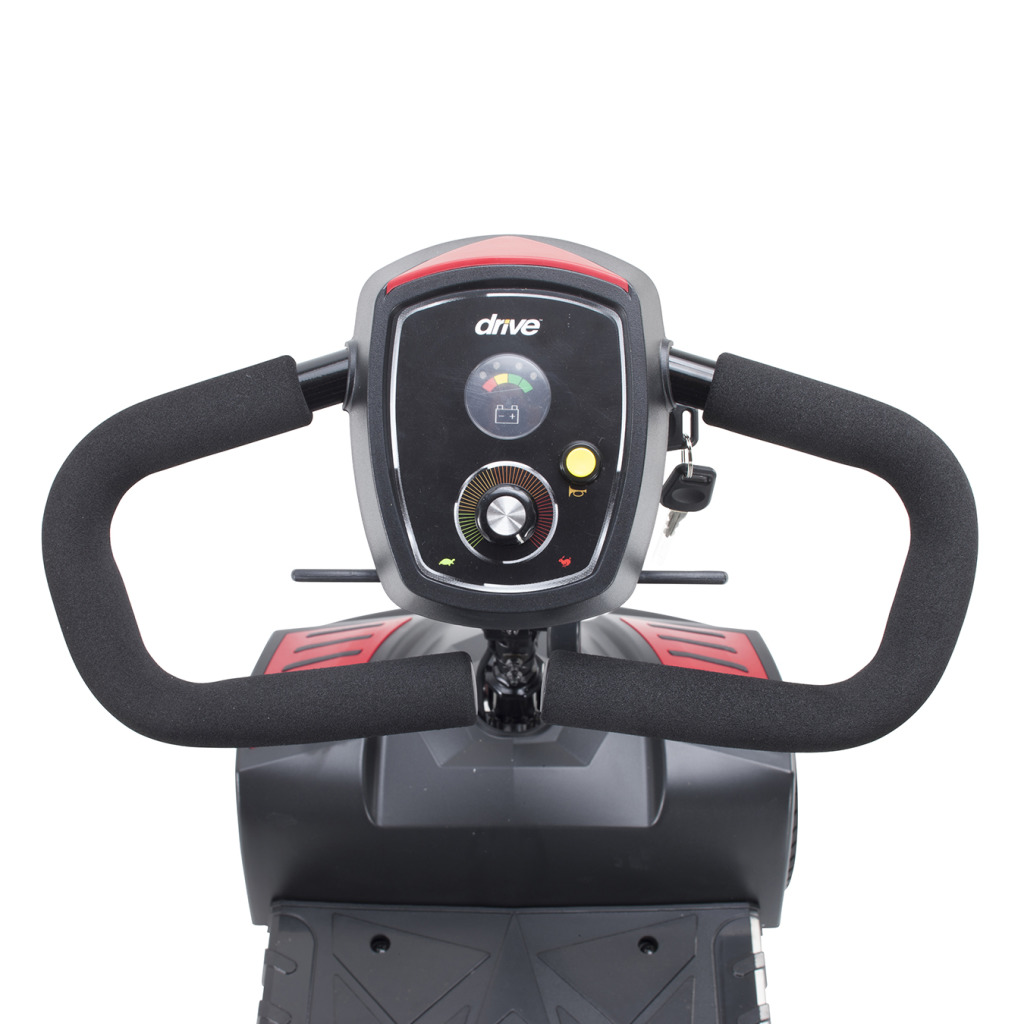

  • Ergonomic throttle control

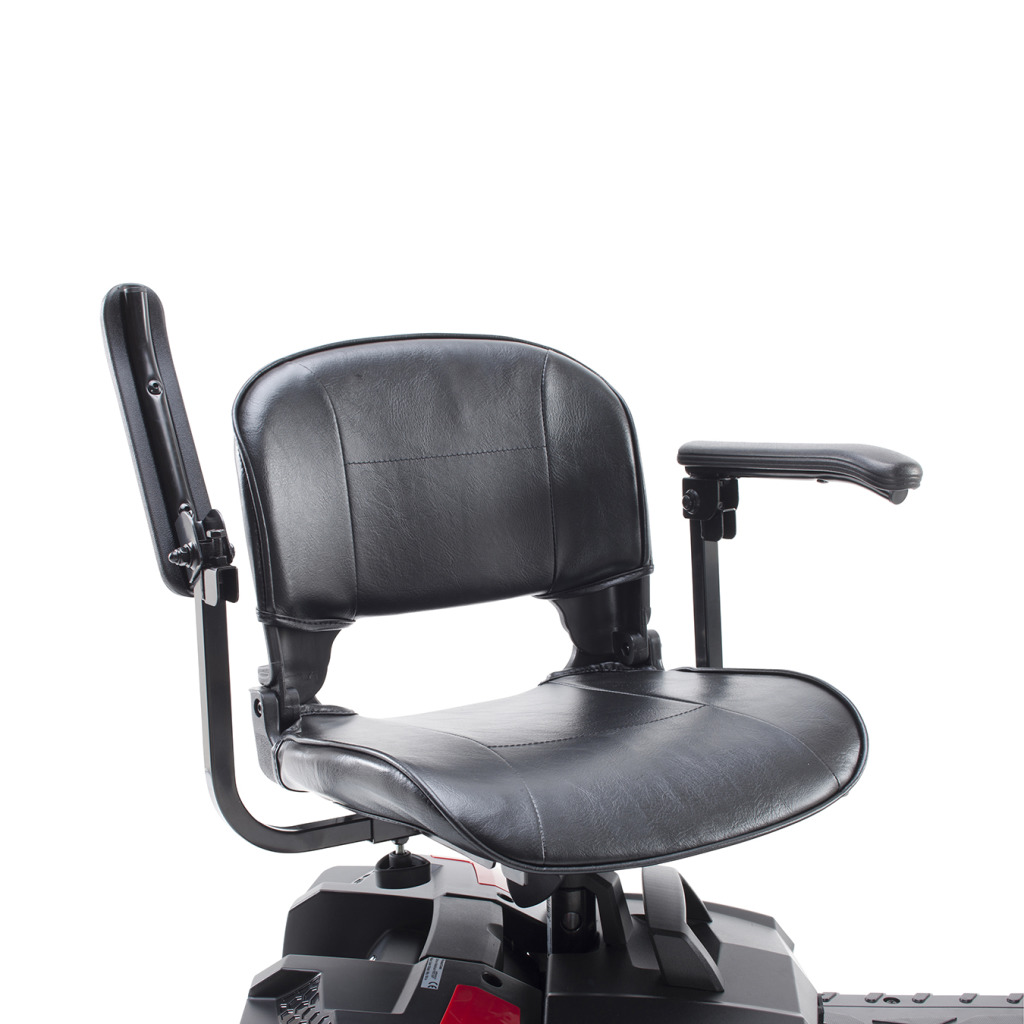

  • Height-adjustable swivel seat with fold-down backrest
  • Flat-free, non-marking tires
  • Large, plastic carry basket
  • Easy-to-adjust tiller
  • Anti-tip wheels
  • Delta tiller
  • Easy free wheel operation
  • Available with 12AH or 20AH batteries
  • 20AH batteries increase scooter's maximum range

Specifications

Base Weight 58 lbs
Batteries (pair) 12 Vx12AH, 12V x 20AH (EXT Model only)
Brakes Electromagnetic
Charger 2A Offboard
Climbing Angle 6*
Controller CTE 45A
Dimensions 42.5" (L) X 21.5" (W)
Floor-to-Seat Height 17"-19"
Front Tires 8" X 2" Flat-Free
Ground Clearance 2.5"
HCPCS K0800
Maximum Range 9 miles(12 AH); 15 miles (20 AH)
Motor 27 Vx 270Wx 4700rpm
Rear Tires 8"x 2" Flat-free
Seat Dimensions 16.5" (W) x 16" (D)
Seat Weight 16 lbs.
Top Speed 4.25 mph
Total Weight 94 lbs.
Turning Radius 53.75"
Warranty on Batteries 12 Months
Warranty on Electronic Controller/Drive Train Comp 24 Months
Warranty of Frame Lifetime
Weight Capacity 300 LBS.
